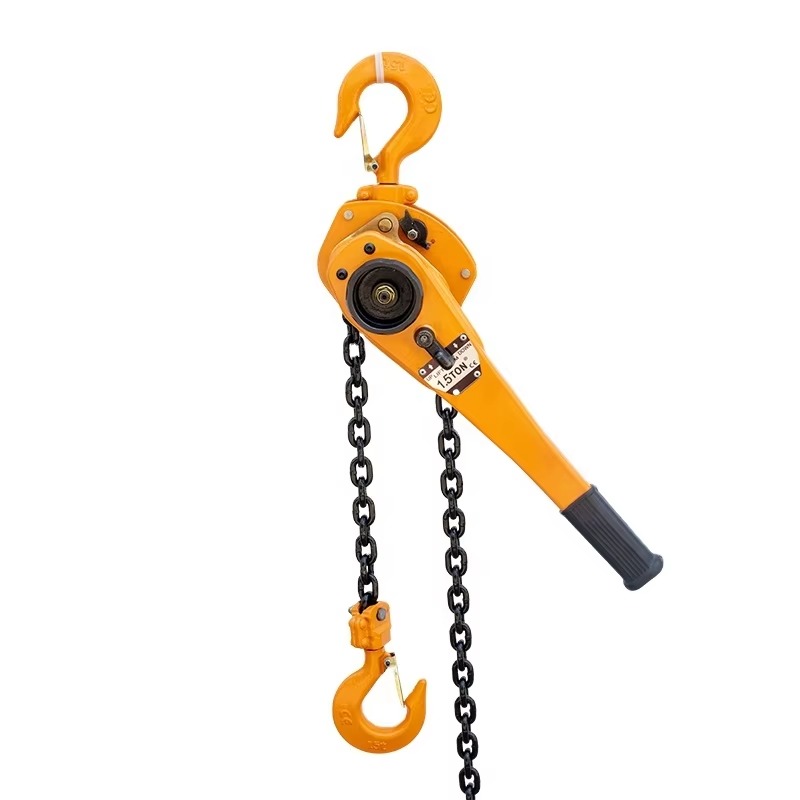

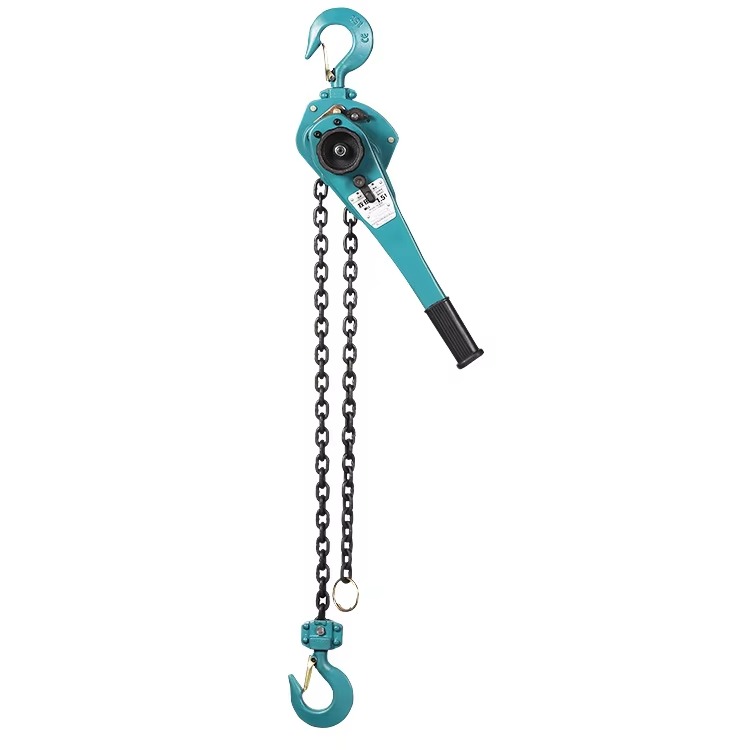

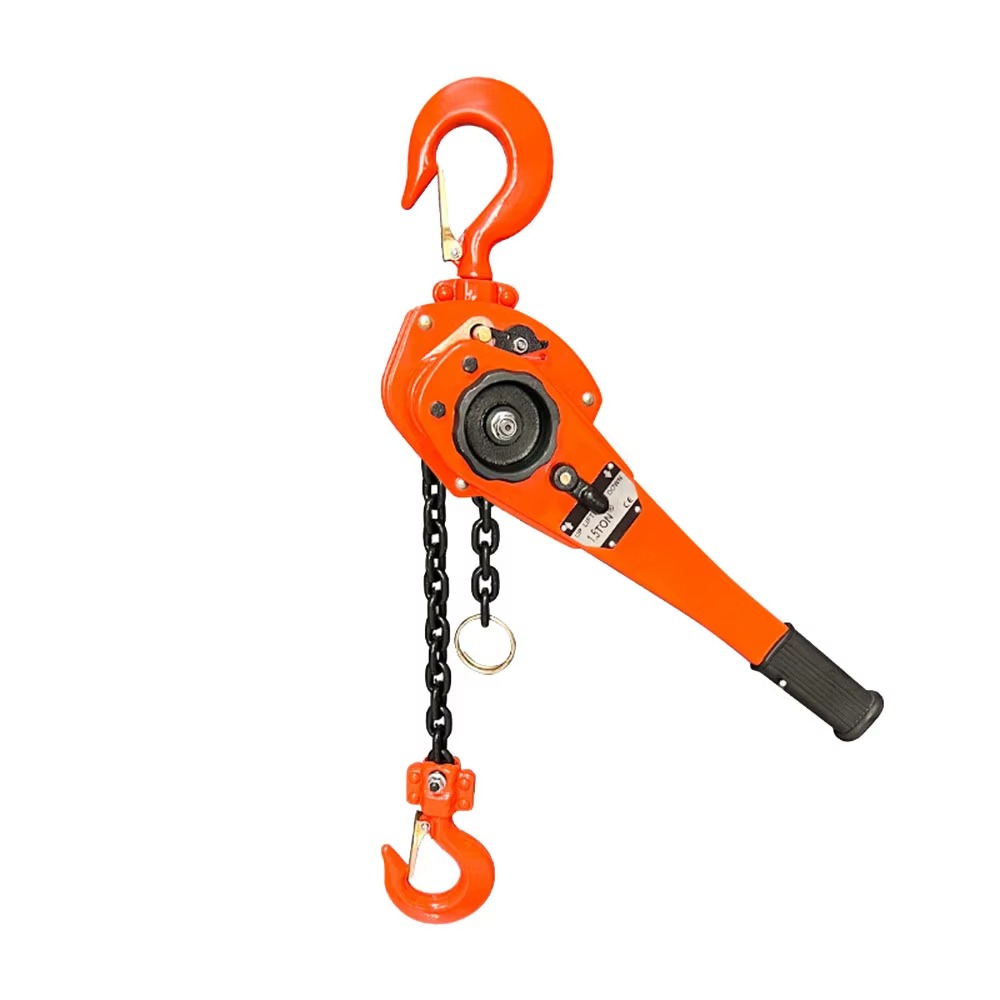

The lever hoist is a compact and reliable manual lifting and pulling device designed for precise load control in tight or hard-to-reach spaces. It uses a ratchet lever mechanism that allows the operator to lift, pull, tension, and position heavy loads safely and efficiently with minimal physical effort.

Compared with traditional chain hoists, the lever hoist offers better control, easier operation at different angles, and greater flexibility in confined working environments. It is widely used in construction, equipment installation, maintenance, shipyards, power plants, and industrial workshops.

Key Features
Compact and lightweight design – easy to carry, install, and operate in limited spaces
High-strength alloy steel components – durable body and load chain ensure long service life
Smooth ratchet mechanism – provides precise load control and stable operation
Built-in overload protection – enhances safety during lifting and pulling operations
360° rotating safety hooks with latches – easy load attachment and improved operational flexibility

Corrosion-resistant surface treatment – suitable for indoor and outdoor use

Typical Applications
Equipment installation and alignment
Lifting and positioning heavy machinery
Tensioning cables, wires, and structures
Maintenance work in factories, shipyards, and power stations

Construction and infrastructure projects

Why Choose Our Lever Hoist

Our lever hoists are designed to meet demanding industrial standards while remaining easy to use in daily operations. Each unit is tested before delivery to ensure smooth performance, reliable load control, and long-term durability. Whether you need a tool for precise positioning, safe lifting, or tensioning applications, our lever hoist offers a practical and cost-effective solution.

Model		VT-0.8	VT-1.6	VT-3.2	VT-6.3	VT-9
Load Capacity	t	0.8	1.5	3.2	6.3	9
Standard Length	m	1.5	1.5	1.5	1.5	1.5
Operational Test Load	kN	11.2	22.5	45	75	135
Force Required to Lift Rated Load	N	140	230	285	385	390
Number of Load Chain Strands		1	2	2	3	4
Load Chain Size	mm	6×18	7.1×21	9×27	10×30	9×27
Dimensions (MM)	A	168	164	196	196	196
	B	98	102	133	133	133
	C	155	155	190	235	312
	D	37	47	51	66	81
	H	340	495	465	615	660
	L	255	355	355	355	355
	K	23	33	36	46	54
Net Weight	kg	6.25	10.8	18.7	28.7	41.1
Packaging Dimensions	cm	33X18X185	45.5X20X20.54	48X22X23	50.5X23X23	48.5X32.5X25
Additional Weight per Meter of Extension	kg	0.8	1.1	2.2	4.4	6.6

Lever Hoist
