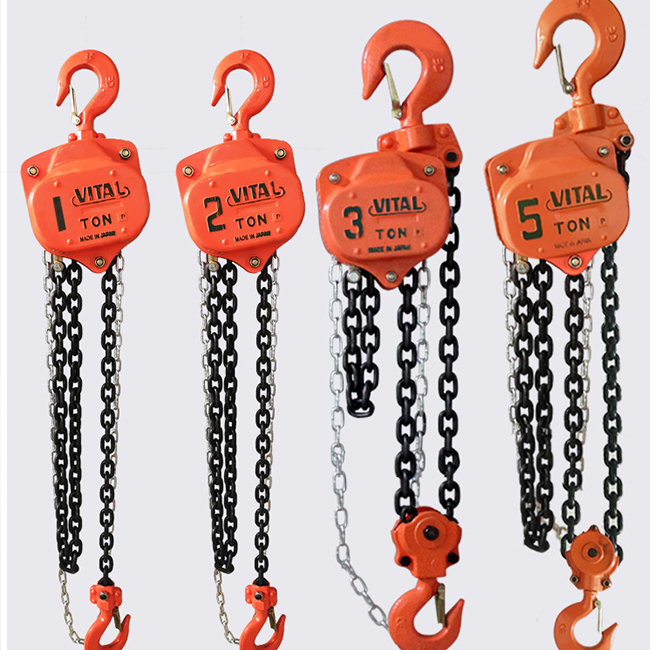

VT-Chain Hoist Manual Chain Hoist

Product Description

Incorporating Japanese engineering, the system features a twin-pawl and dual-guide-wheel mechanism for superior safety. The outer housing is constructed from alloy steel, delivering exceptional reliability and durability. Gear components are treated with specialized heat treatment processes. It is equipped with a high-grade Grade 80 alloy steel lifting chain, ensuring operational safety and an extended service life. The curled edge design minimizes friction and facilitates smooth operation.

Stable Quality
Reasonable Price
Quick Delivery

Online Consultation PDF Download

Added Successfully

Continue To Visit Inquiry Now

Product Description

The VT-series ratchet hoist integrates advanced Japanese engineering to deliver a robust and secure lifting solution. It is designed for reliable performance in demanding industrial environments.

Key Features & Specifications

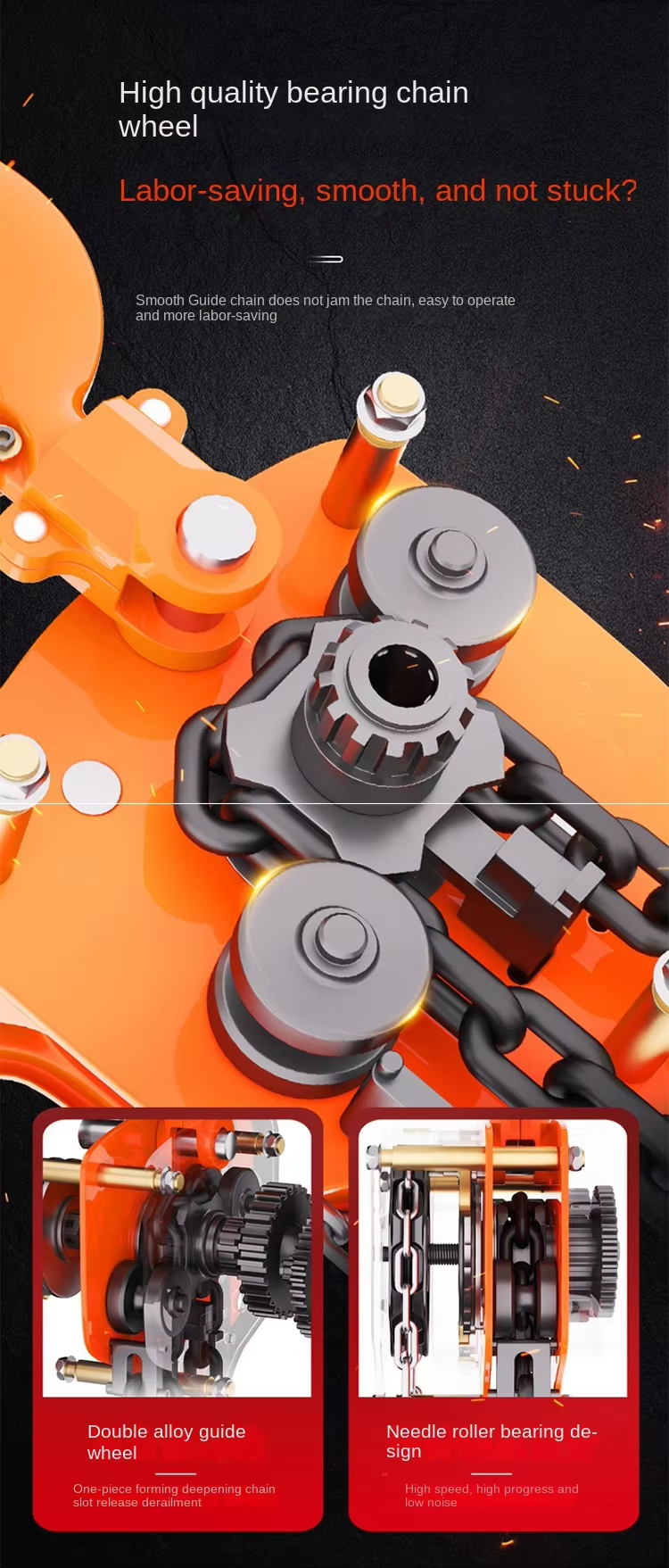

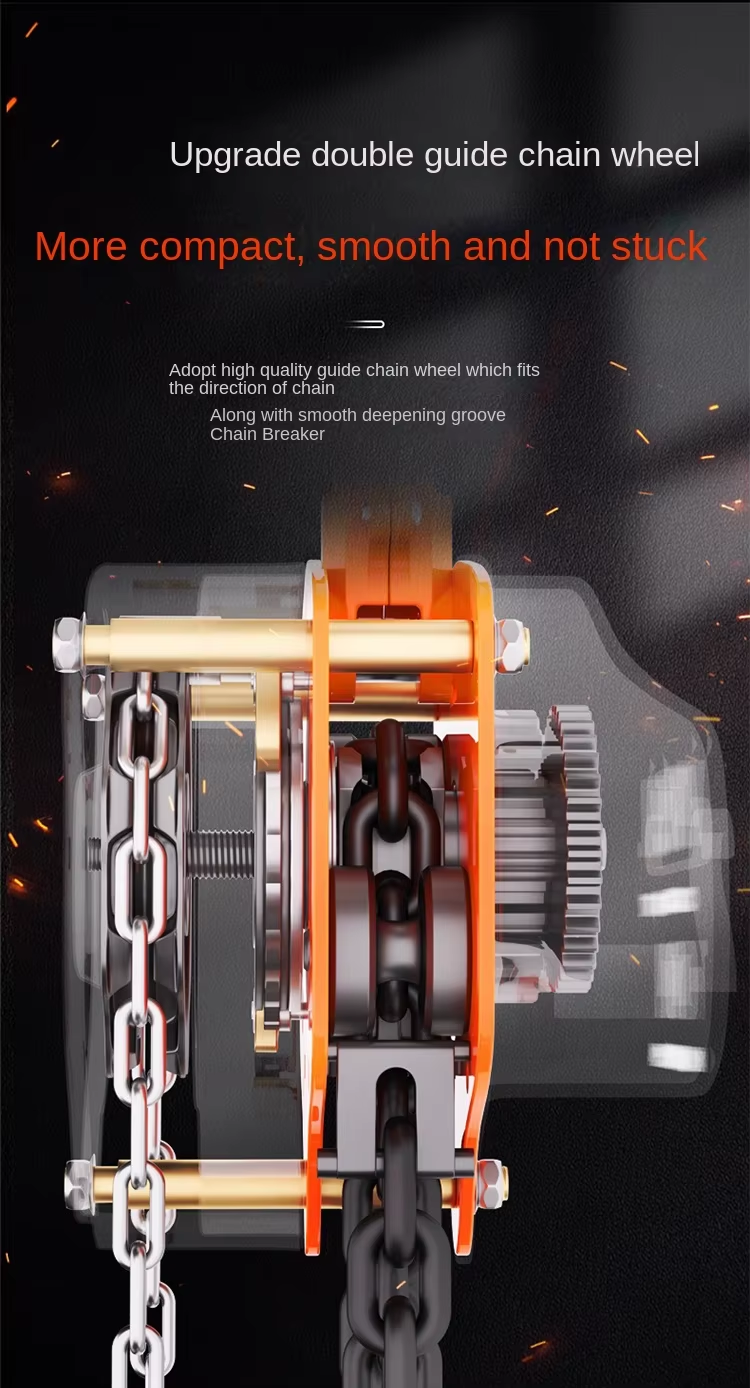

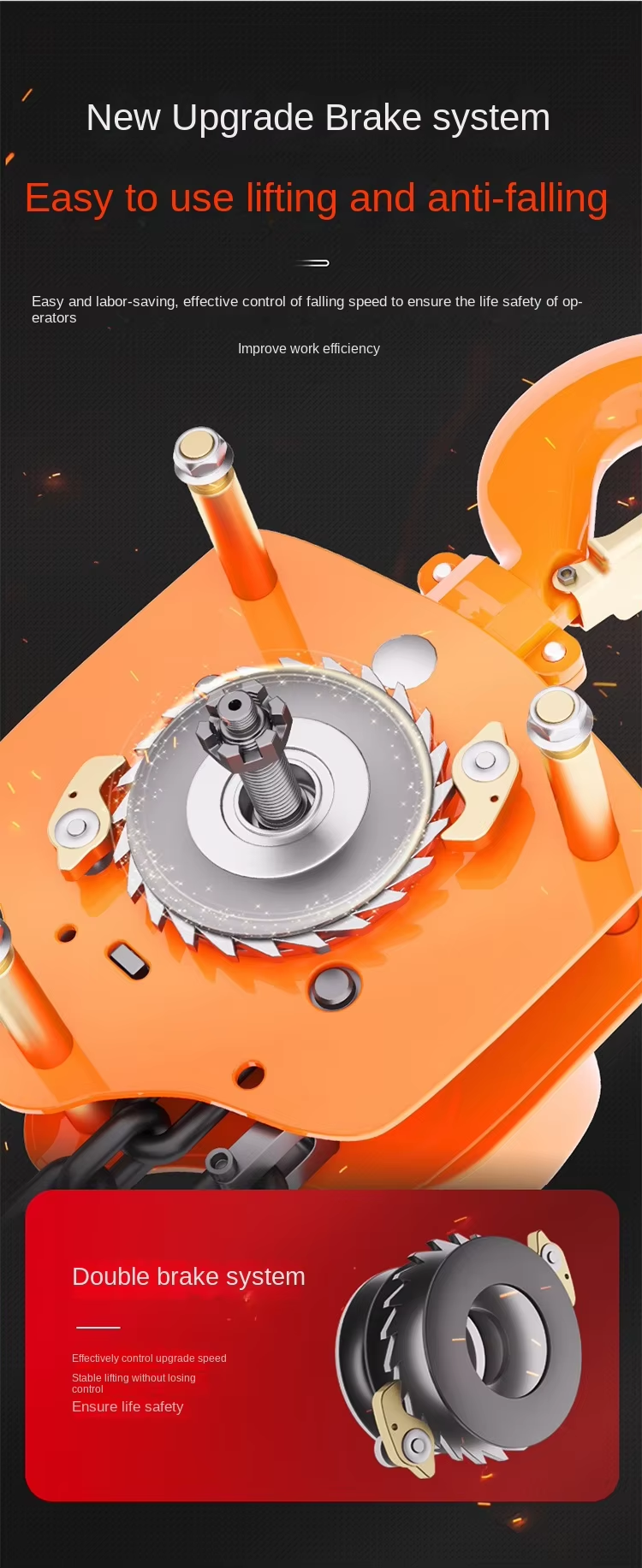

• Safety Mechanism: A dual-pawl brake system, complemented by dual guide wheels, ensures operational safety and stability.

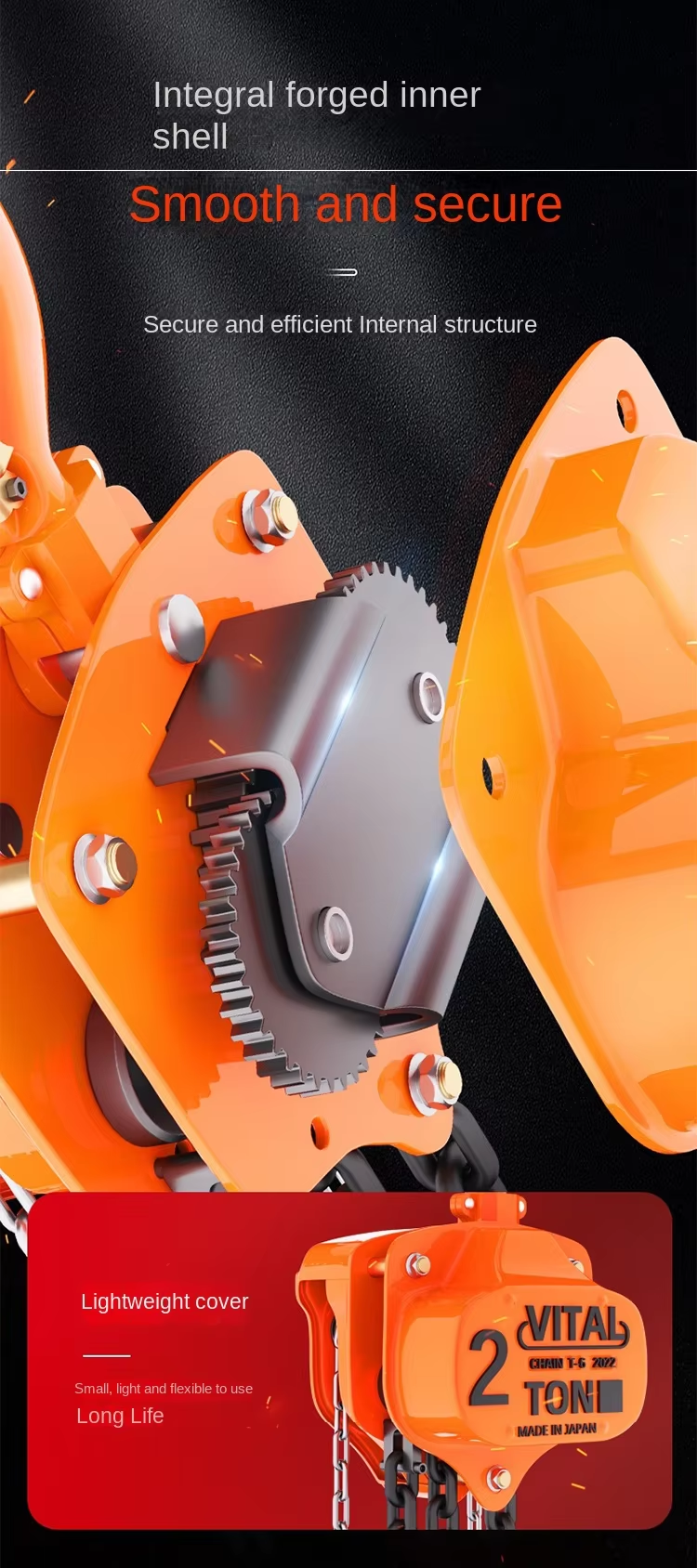

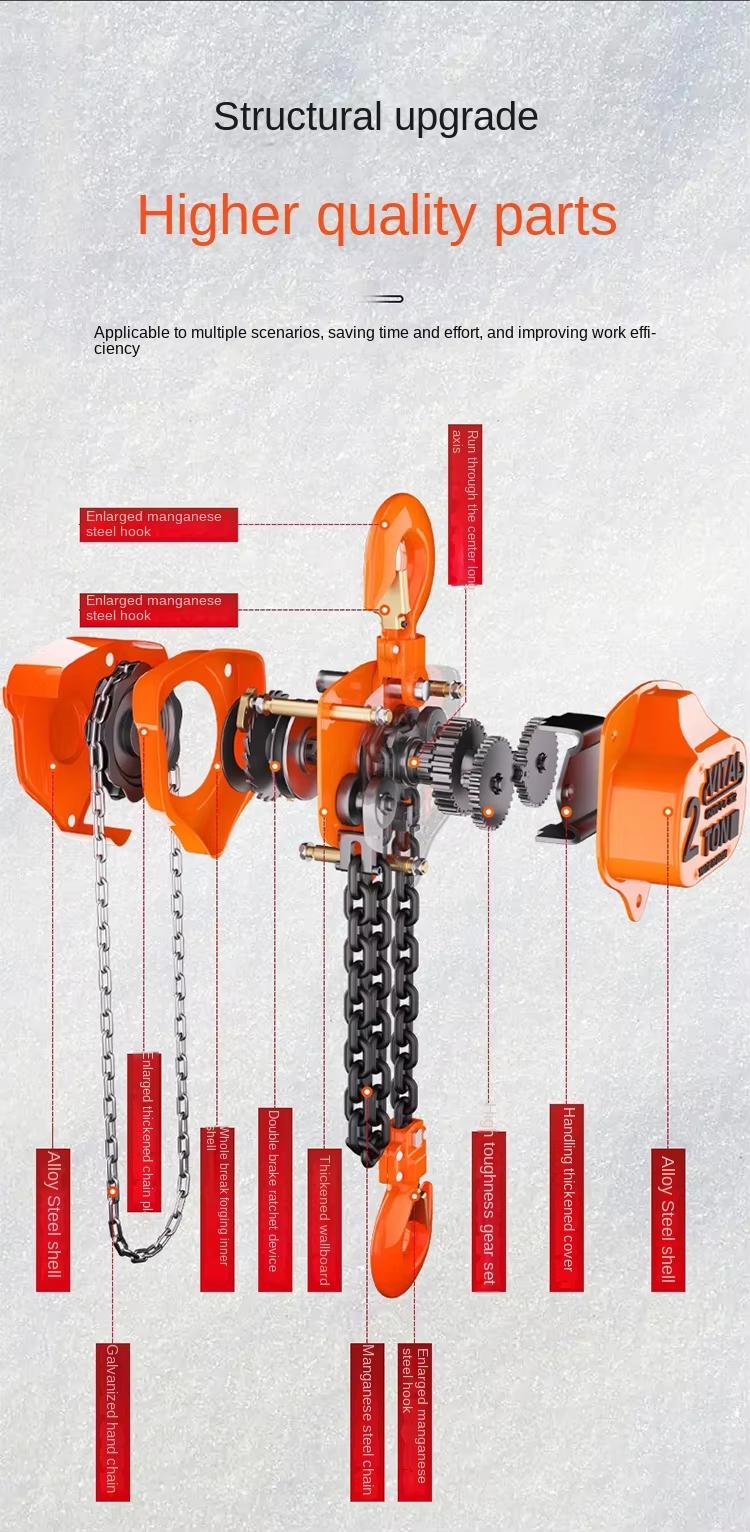

• Robust Construction: The alloy steel housing and specially heat-treated gear components provide exceptional durability and impact resistance.
• Premium Lifting Components: Features a high-strength Grade 80 alloy steel lifting chain and a precision-forged alloy steel hook.

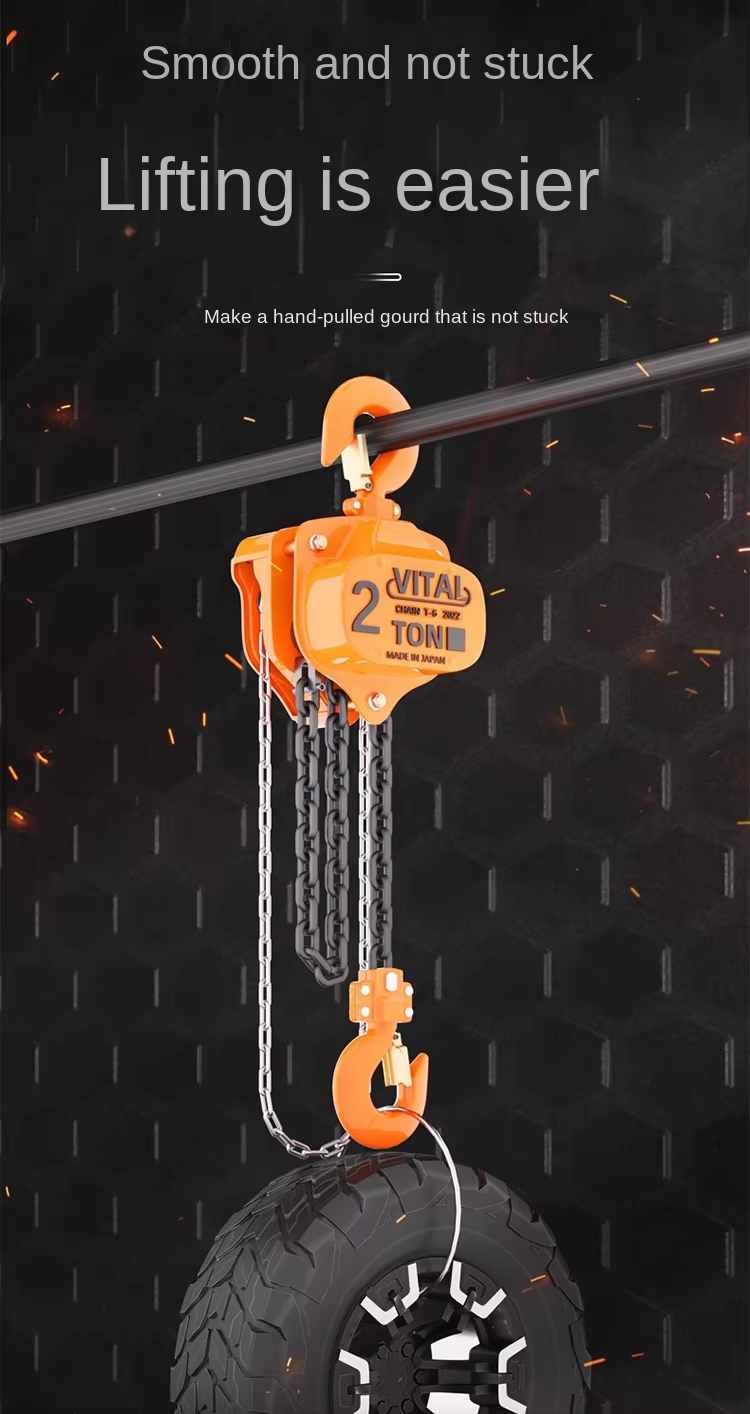

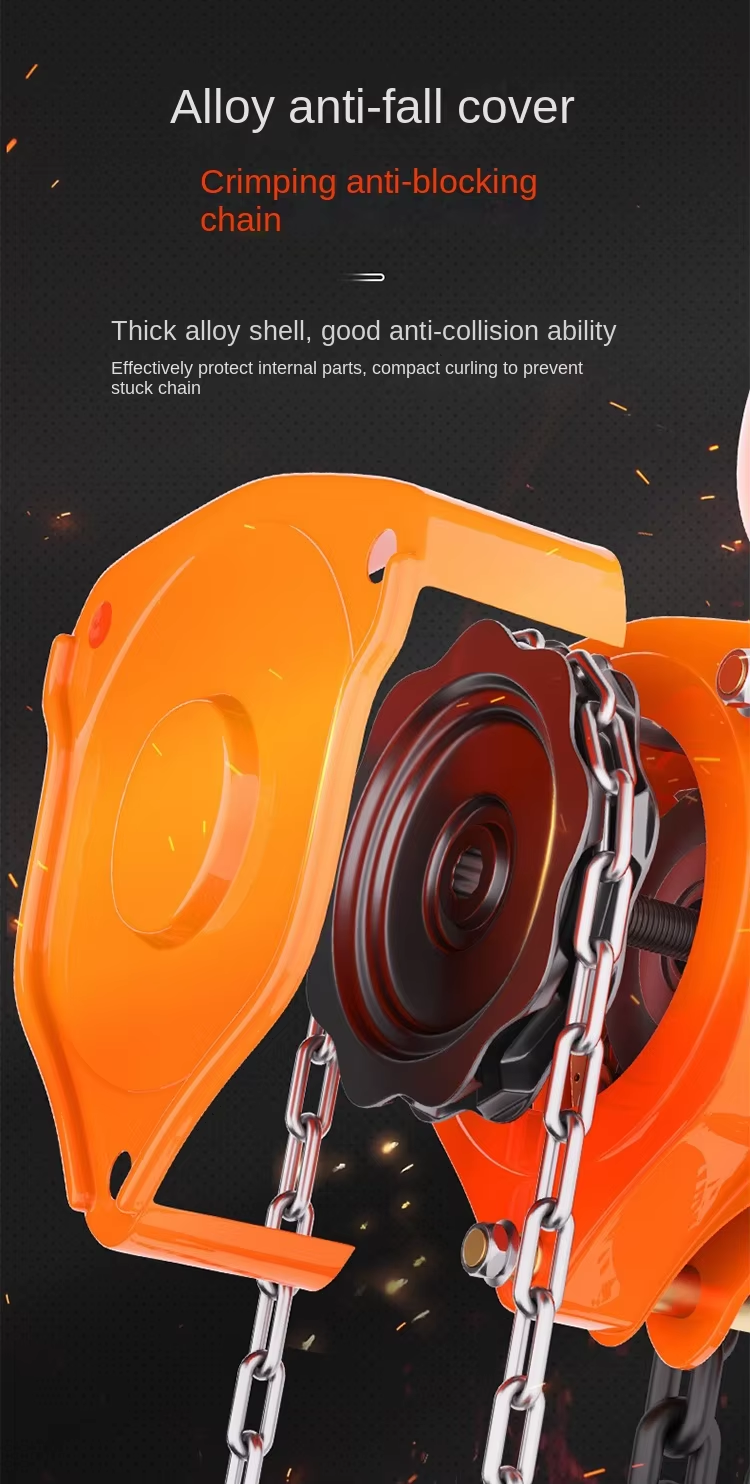

• Smooth Operation: The curled edge design of the housing minimizes chain contact for effortless and smooth pulling.

Typical Applications

Ideal for a wide range of industries including machinery manufacturing, construction, warehousing & logistics, shipbuilding, and power generation. Commonly used for equipment installation, cargo handling, and critical maintenance operations.

Model	Capacity	Standard Lift	Running	Effort required	No.of falls of	Load chain	Dimensions(mm)	Net	Packing
Model	(t)	(m)	test(t)	to lift max load(n)	load chain	diameter(mm)	A B D H	weight (kg)	(LWH)(cm)
VT-0.5T	0.5	2.5	0.5	350	1	5	126 145 28 285	8.4	221415
VT-1T	1	2.5	1	330	1	6.3	151 159 32 315	12	251916
VT-1.5T	1.5	2.5	1.5	348	1	7.1	151 178 36 340	16.2	332416

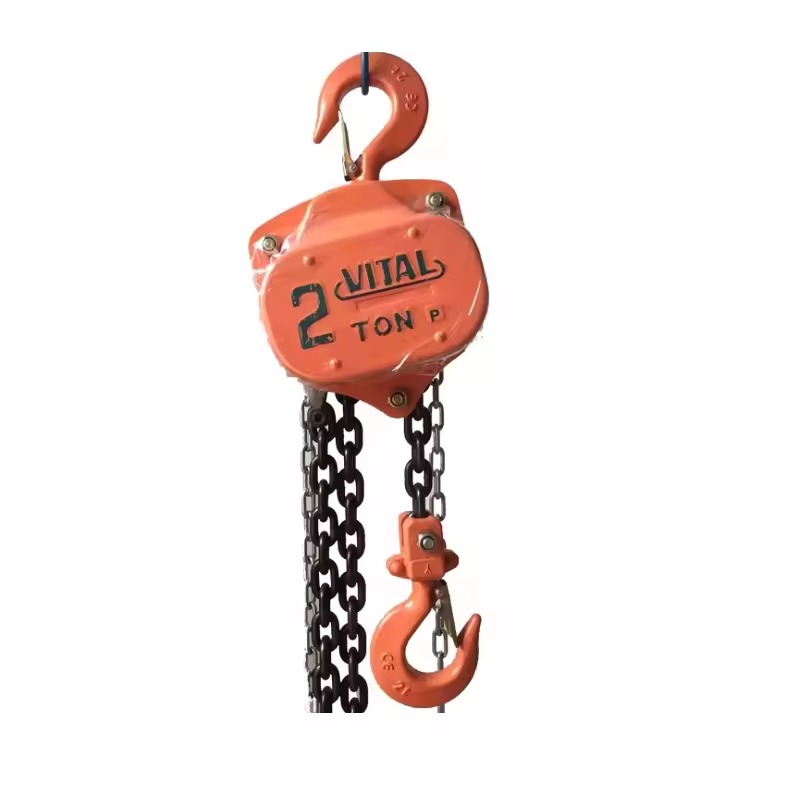

VT-2T	2	3	2	365	1	8	183 205 36 380	20	332419

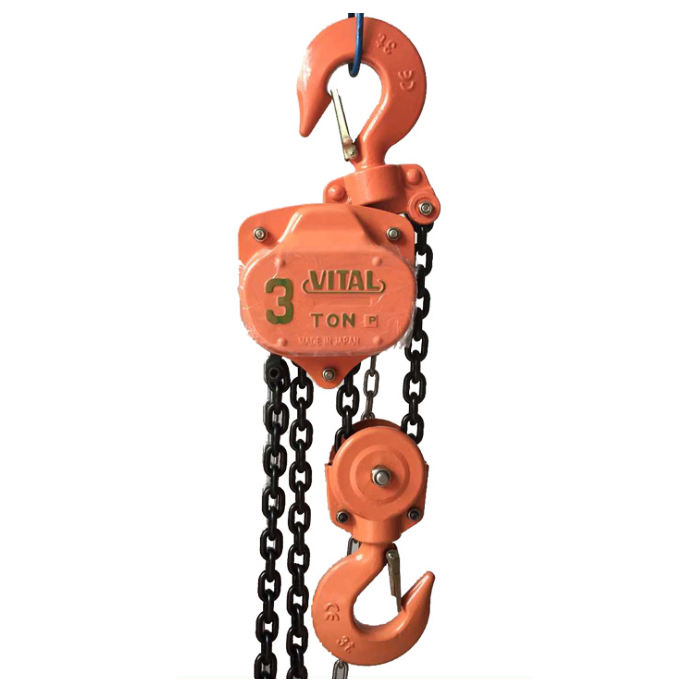

VT-3T	3	3	3	360	2	7.1	151 208 46 475	24	34.52416
VT-5T	5	3	5	410	2	9	183 264 46 600	41	403019
VT-10T	10	3	10	410	4	9	188 398 57 720	79	484218.5
VT-15T	15	3	15	435	6	9	190 580 75 870	120	695620
VT-20T	20	3	20	435*2	8	9	192 630 82 890	193	786820
VT-30T	30	3	30	435*2	12	9	330 670 106 1000	220	856730
VT-50T	50	3	50	435*2	22	9	410 900 130 1950	1092	110100130
