Electric Chain Hoist (1-10 Ton Capacity) with I-Beam Trolley


Product Description

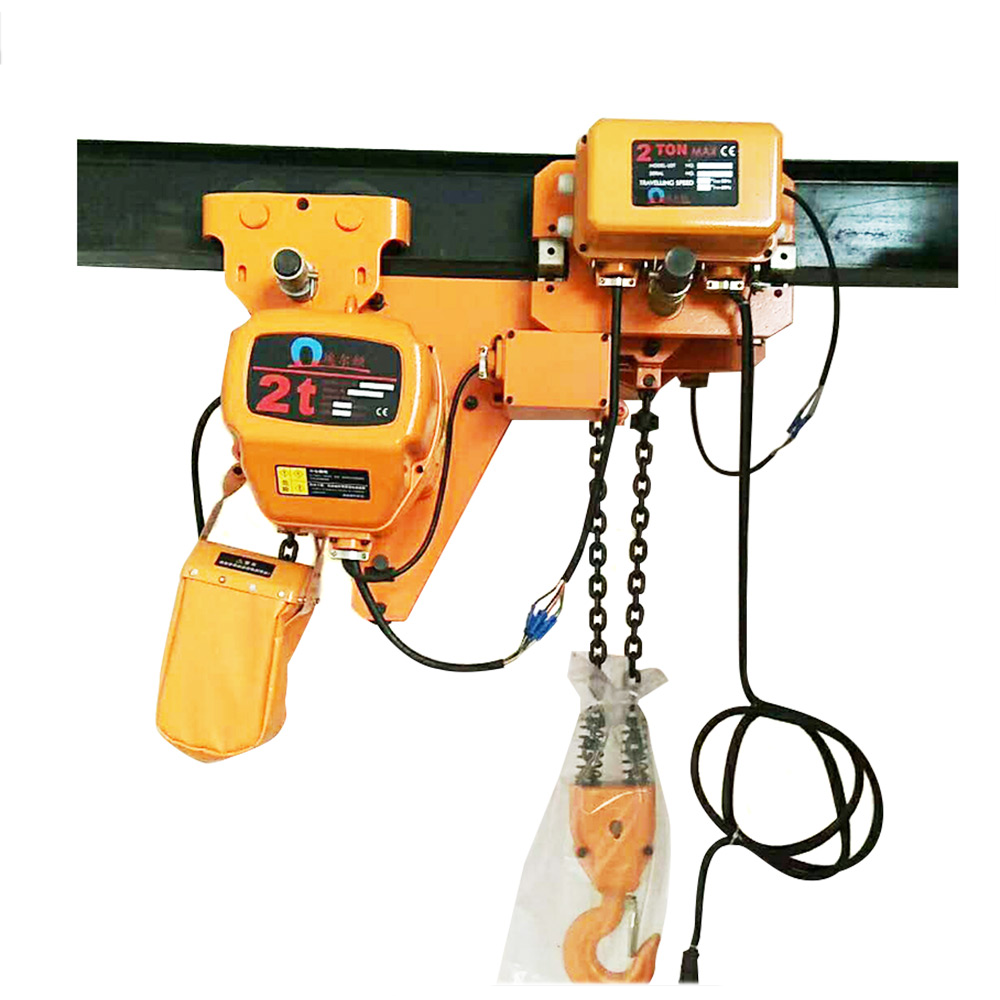

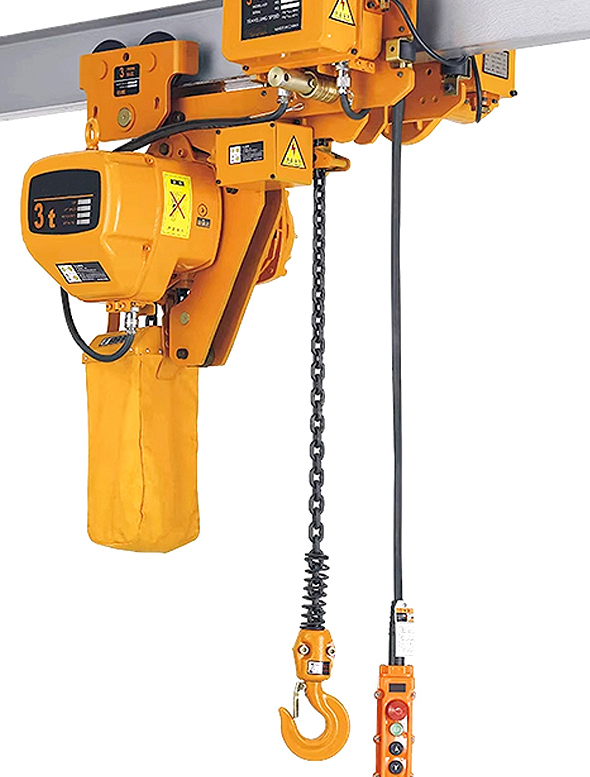

            The HHBB electric chain hoist features a uniquely optimized structure that shortens the distance between the hoist body and the beam rail. It is suitable for operations in buildings with low side clearances, and particularly ideal for temporarily constructed workshops or locations where the effective lifting space inside the building needs to be expanded. The most critical components of this equipment are the chain and the braking system.

        Online Consultation
        PDF Download


                We are professionals with rich production experience in electric chain hoists.
The lifting capacity of our electric chain hoists ranges from 500 kg to 30 tons, available in hook-mounted or trolley-mounted types.
All electric chain hoists are CE-certified.
The G80 chain is of superior quality.
The hook is hot-forged, featuring high strength and resistance to breakage.
The buttons and remote controls are of high quality.
The electric chain hoist can be equipped with a rain cover, a travel limiter, and an overload limiter.
Single-speed or dual-speed options are available according to your requirements.
Three-phase electric chain hoists: Voltage ranges from 220V to 690V, with 50/60Hz and 3-phase configuration. We can also produce single-phase electric chain hoists.
Colors can be customized according to your requirements, such as blue, yellow, orange, red, etc.
Custom specifications can be made according to customer requirements.

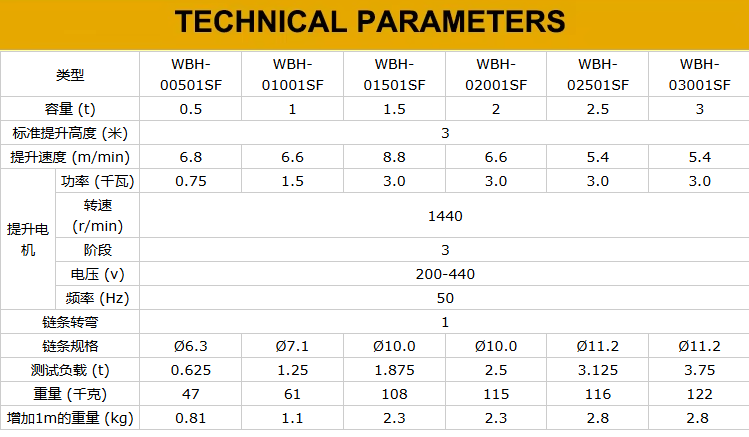

Capacity (Ton)  | 0.5  | 1  | 1.5  | 2  | 2.5  | 5  |
Standard Lifting Height (m)  | 3  | 3  | 3  | 3  | 3  | 3  |
Lifting Speed (m/min)  | 6.8  | 6.6  | 8.8  | 6.6  | 5.4  | 2.7  |
Lifting Motor  | -  | -  | -  | -  | -  | -  |
Power (kW)  | 0.75  | 1.5  | 3  | 3  | 3  | 3  |
Speed (r/min)  | 1440  | 1440  | 1440  | 1440  | 1440  | 1440  |
Phases  | 3  | 3  | 3  | 3  | 3  | 3  |
Lifting Voltage (V)  | 200~460  | 200~460  | 200~460  | 200~460  | 200~460  | 200~460  |
Lifting Frequency (Hz)  | 50/60  | 50/60  | 50/60  | 50/60  | 50/60  | 50/60  |
Chain Deflection  | 1  | 1  | 1  | 1  | 1  | 1  |
Chain Specification  | 6.3  | 7.1  | 10  | 10  | 11.2  | 11.2  |
Test Load (T)  | 0.625  | 1.25  | 1.875  | 2.5  | 3.125  | 6.25  |
Weight (kg)  | 47  | 61  | 108  | 115  | 116  | 151  |
Weight per 1m Lift (kg)  | 0.81  | 1.1  | 2.3  | 2.3  | 2.8  | 5.6  |
